Rotary Unions

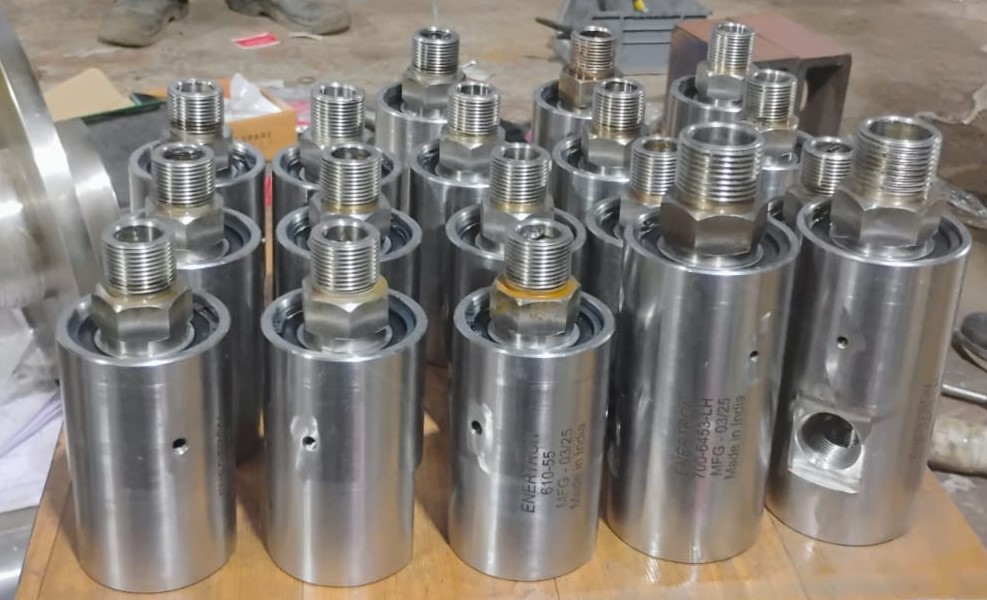

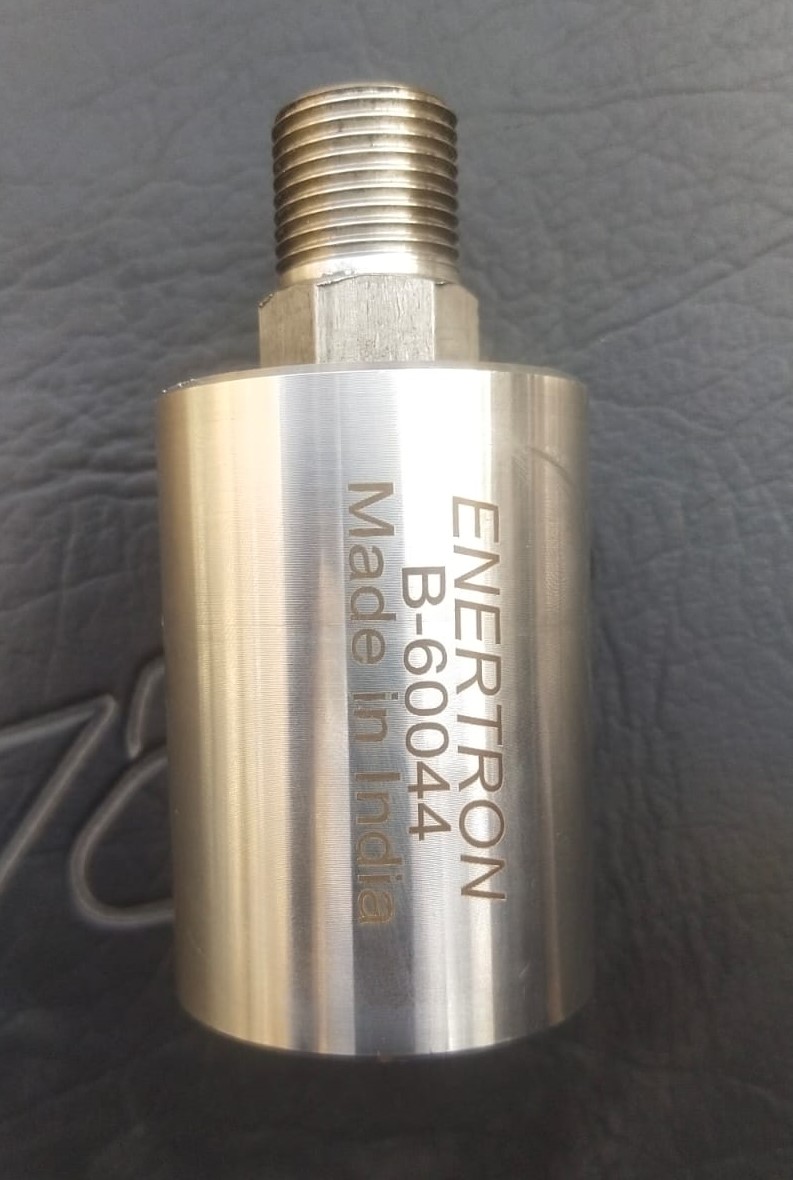

The 600 Series single passage rotary unions are compact, lightweight and corrosion-resistant featuring Carbon Steel with Electroless Nickel Plating body. These are widely used in high pressure Oil/Water applications. All 600 series rotary union come standard with a male threaded shaft and female threaded housing for easy mounting.

• Media Type: Water/Oil/Steam/Thermic Fluid
• Connection Types: British Standard Pipe Thread (BSP); other thread sizes available on request
• Body Material Type: SS304 standard upto 1 BSP. For larger size Carbon Steel with corrosion resistance ENP option is also given. For sizes 2 1/2" and 3" only Carbon Steel with ENP will be standard, SS 304 will be available on request.
• Max Operating Pressure: 10 Bar (Upto 15 Bar available on request)
• Max Rotational Speed: 2500 RPM
• Operating Temperature: -18 to 110 deg Celsius *(Upto 260 deg C available on request for Thermic fluid/steam application) Kindly confirm while ordering
• Below prices are given in standard specifications *Customizations in body material and operating temperature possible and price will increase. Kindly contact for customizations


• Available Passage Size in type inline inlet/outlet passages:



Size (BSP)	Model (Inline Inlet/Outlet)	General Assembly Drawing	Ex-works Unit Price in USD $ for SS304 body	Ex-works Unit Price in USD $ for Carbon Steel with ENP body	Minimum Order Quantity
1/8"	600-11	600-11	29	26	10
1/4"	600-22	600-22	31	27	10
3/8"	600-33	600-33	39	34	8
1/2"	600-44	600-44	40	36	8
3/4"	600-55	600-55	52	46	6
1"	600-66	600-66	59	52	6
1 1/4"	600-77	600-77	97	84	4
1 1/2"	600-88	600-88	125	107	4
2"	600-99	600-99	169	138	2
2 1/2"	600-AA	600-AA	236	192	2
3"	600-BB	600-BB	346	269	2




• Available Passage Size in type perpendicular inlet/outlet passages:



Size (BSP)	Model (Perpendicular inlet/outlet)	General Assembly Drawing	Ex-works Unit Price in USD $ for SS304 body	Ex-works Unit Price in USD $ for Carbon Steel with ENP body	Minimum Order Quantity
1/8"	610-11	610-11	32	29	10
1/4"	610-22	610-22	34	31	10
3/8"	610-33	610-33	44	39	8
1/2"	610-44	610-44	46	42	8
3/4"	610-55	610-55	58	52	6
1"	610-66	610-66	67	59	6
1 1/4"	610-77	610-77	112	97	4
1 1/2"	610-88	610-88	147	126	4
2"	600-99-WE	600-99 With Elbow	196	165	2
2 1/2"	600-AA-WE	600-AA With Elbow	267	224	2
3"	600-BB-WE	600-BB With Elbow	386	308	2



• Kindly contact us for estimating delivery time or shipping charges


• Drawings provided above are based on our best knowledge. Minor updates in drawing might not be reflected on website. Buyers are requested to confirm the drawing while order placement.
