Swivel Joints

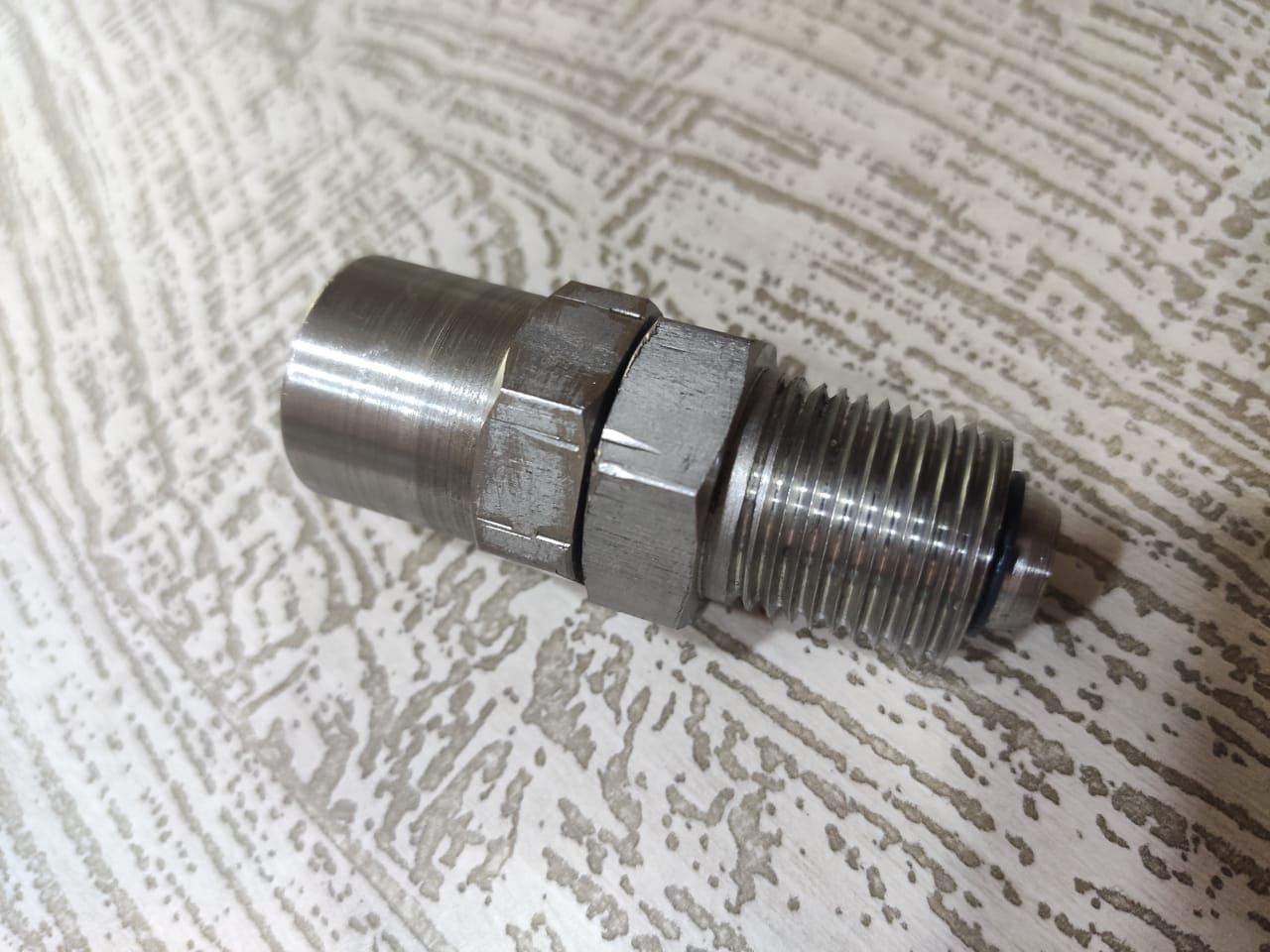

The 300 Series are inline swivels with Male-Female threads used for very less RPM usage

• Media Type: Air/Gas/Water/Oil/Chemical
• Available Passage Size:

Size (BSP)	Model (Type Inline inlet/outlet ports)
1/4"	B-30022
3/8"	B-30033
1/2"	B-30044
3/4"	B-30055
1"	B-30066
1 1/4"	B-30077
1 1/2"	B-30088
2"	B-30099

• Connection Types: British Standard Pipe Thread (BSP); other thread size available on request
• Body Material Type: Stainless Steel Housing and Shaft
• Max Operating Pressure: 200 Bar
• Max Vacuum: 30 Hg
• Max Rotational Speed: 20 RPM
• Operating Temperature: -18 to 105 deg Celsius (High temperature available on request)

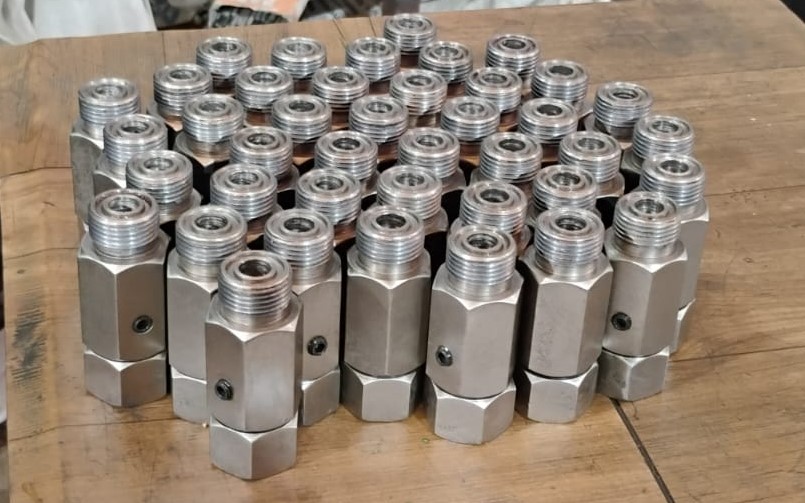

* Customization available if operating parameters does not fit into standard product range
