Rotary Unions

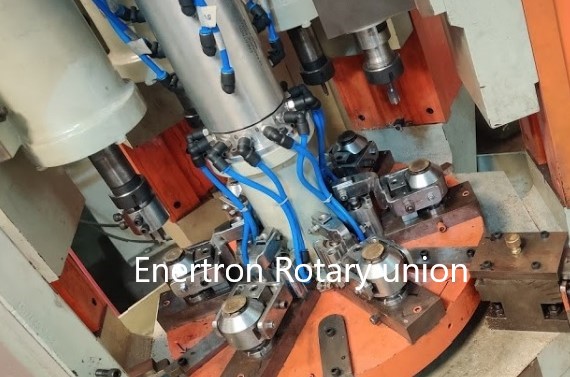

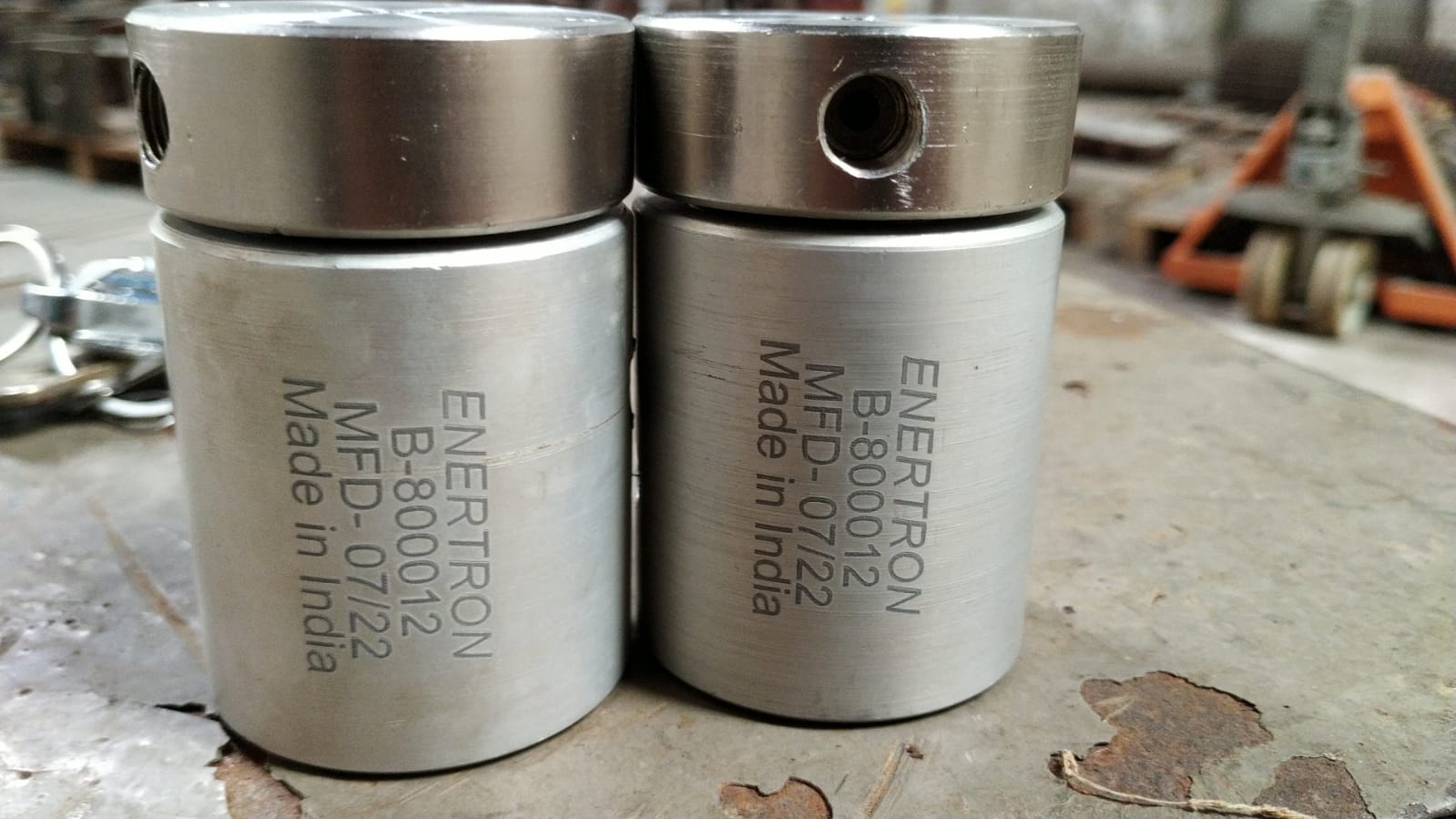

The 800 Series multi passage rotary unions are compact, lightweight and corrosion-resistant widely used in automation and robotics applications

• Media Type: Air/Gas/Vacuum
• Number of passages: 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
• Available Passage Size: 1/8", 1/4", 3/8", 1/2"
• Connection Types: British Standard Pipe Thread (BSP) or Metric threads
• Body Material Type: Aluminum
• With or without through hole as per requirement. Integrated slip ring also available
• Paintings & Coatings: Anodizing (Housing) and Electroless nickel plated shaft
• Max Operating Pressure: 20 Bar
• Max Vacuum: 30 Hg
• Max Rotational Speed: 300 RPM
• Operating Temperature: -18 to 105 deg Celsius
