Rotary Unions

Case Study 1:

A customer had requirement of 1 inlet 3 outlet pneumatic rotary union and he needed to pass a pipe through the center of rotary union.

Our approach: 1) Design layout CAD model according to customer requirement and approve the physical dimensions from customer. 2) Engineer the inner sealing as per customer required parameters 3) Manufacture product and test its required functionality. 4) Deliver the product.

Case Study 2:

A customer had requirement of 2 port air and 2 port water ( total 4 passage) flange mounted rotary union. This rotary union had to replace another rotary union made by an American company

Our approach: 1) Design layout CAD model according to model number and datasheet provided by customer. Approve the dimensions from customer. 2) Engineer the inner sealing as per customer required parameters 3) Manufacture product and test its required functionality. 4) Deliver the product.

Case Study 3:

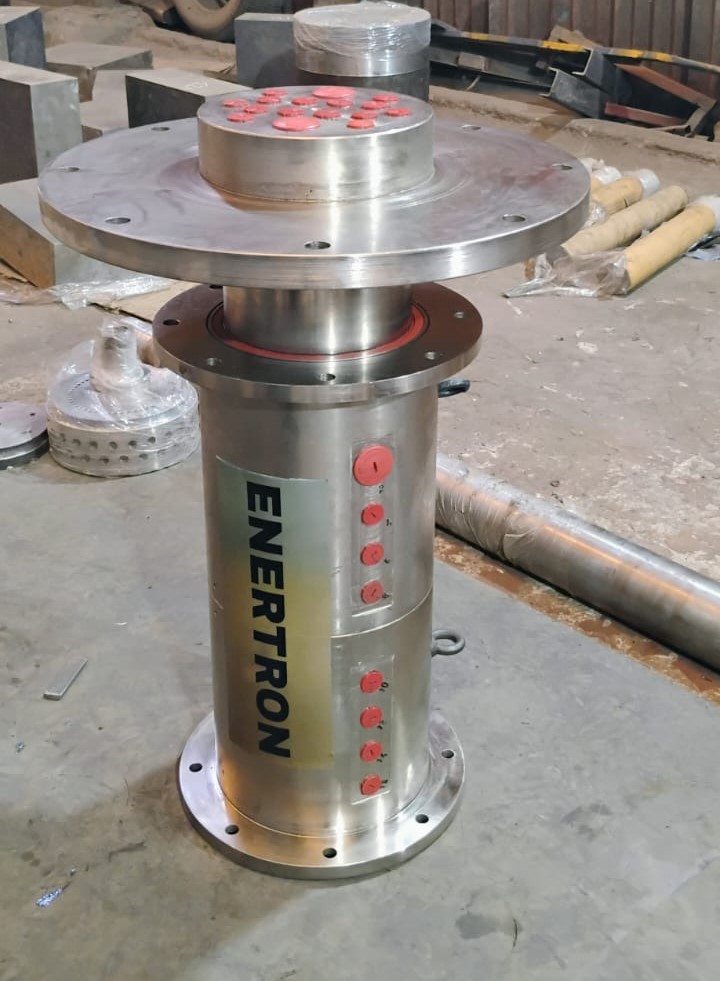

A customer had requirement of 4 inlet 4 outlet hydraulic flange mounted rotary union for mounting beneath hydraulic motor for his special application

Our approach: 1) Design layout CAD model according to customer requirement and approve the physical dimensions from customer. 2) Engineer the inner sealing as per customer required parameters 3) Manufacture product and test its required functionality. 4) Deliver the product.

Case Study 4:

A customer had requirement of 6 inlet 6 outlet pneumatic flange mounted rotary union and he wanted to pass 12 wires for control of pneumatic cylinders

Our approach: 1) Design layout CAD model according to customer requirement and approve the physical dimensions from customer. 2) Engineer the inner sealing as per customer required parameters. Integrate the slipring as per his requirement. 3) Manufacture product and test its required functionality. 4) Deliver the product.

Case Study 5:

A customer had requirement of rotary unions for chilled water to pass through it, for his injection moulding machine

Our approach: 1) Design layout CAD model according to customer requirement and approve the physical dimensions from customer. 2) Engineer the inner sealing as per customer required parameters. 3) Manufacture product and test its required functionality. 4) Deliver the product.

Case Study 6:

A customer had a European machine installed with German make rotary union which was leaking. He wanted us to make a rotary union which can replace the German one in dimension and performance

Our approach: 1) Design layout CAD model according to the model number and datasheet of original German rotary union provided by customer. 2) Engineer the inner sealing as per customer required parameters. 3) Manufacture product and test its required functionality. 4) Deliver the product.
