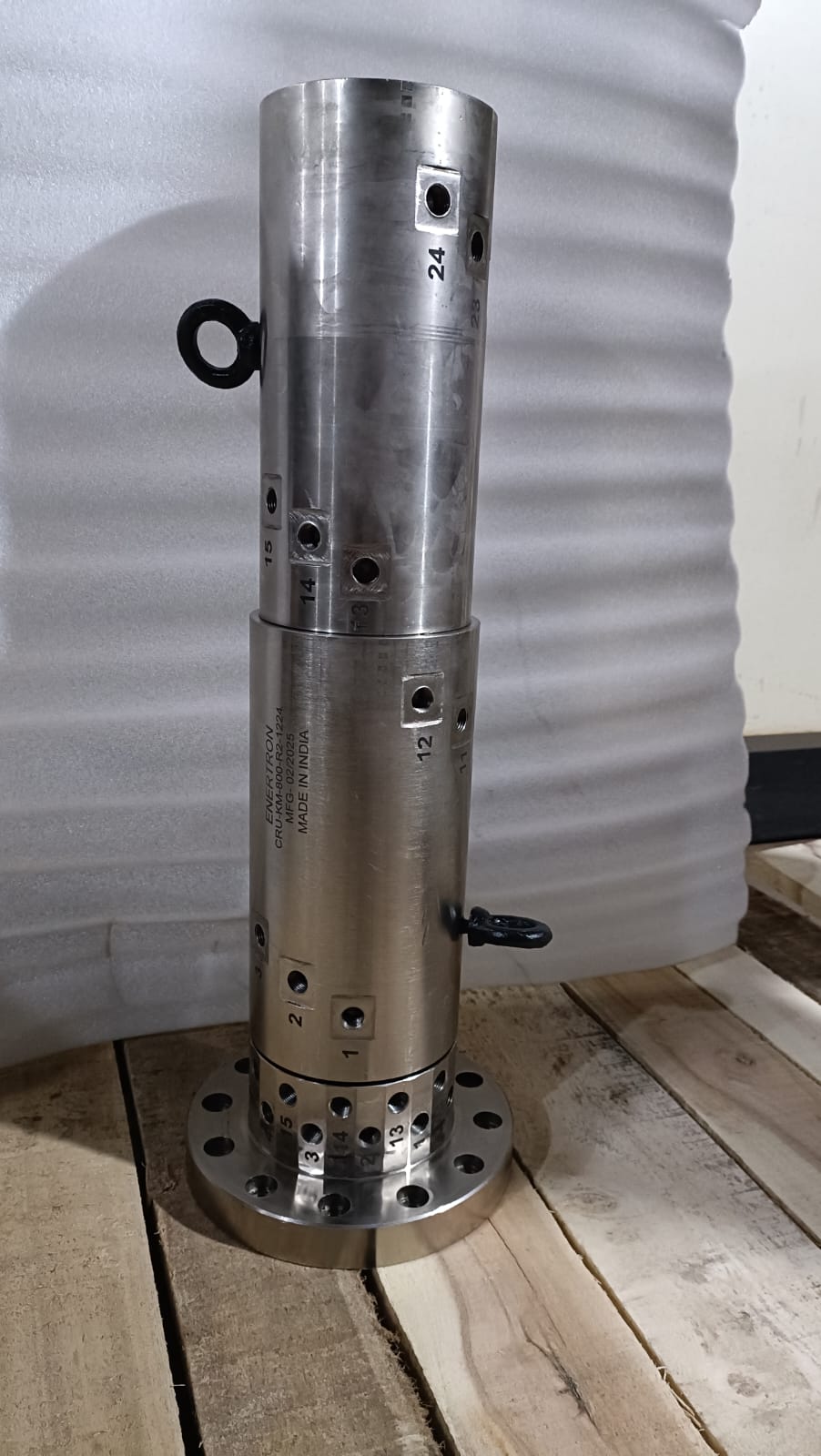

The 900 Series multi passage rotary unions are widely used for hydraulic applications
  • Media Type: Oil/Water/Chemical
  • Number of passages: 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
  • Available Passage Size: 1/8", 1/4", 3/8", 1/2"
  • Connection Types: British Standard Pipe Thread (BSP) or Metric threads
  • Body Material Type: Carbon Steel or Stainless Steel
  • With or without through hole as per requirement. Integrated slip ring also available
  • Max Operating Pressure: 100 Bar
  • Max Rotational Speed: 80 RPM
  • Operating Temperature: -18 to 105 deg Celsius (Higher temperature product also available)
