Rotary Unions

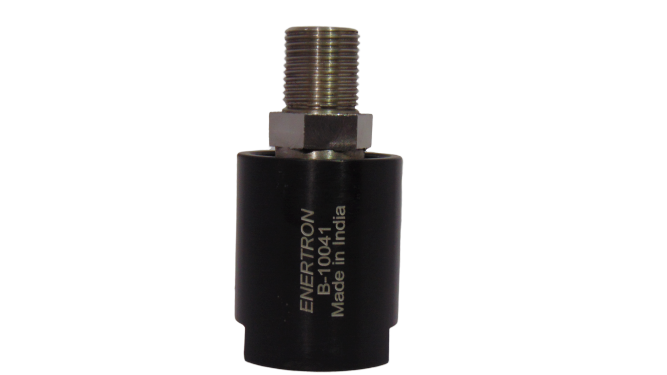

The 100 Series single passage rotary unions are compact, lightweight and corrosion-resistant featuring Carbon Steel with Electroless Nickel Plating body. These are widely used in air/vacuum applications

• Media Type: Air/Vacuum/Water/Oil
• Connection Types: British Standard Pipe Thread (BSP); other thread sizes available on request
• Body Material Type: Carbon Steel with corrosion resistance ENP plating *SS304, SS316 and Aluminum body available on request
• Max Operating Pressure: 40 Bar
• Max Vacuum: 30 Hg
• Max Rotational Speed: 300 RPM
• Operating Temperature: -18 to 105 deg Celsius (Upto 250 deg C available on request) Kindly confirm while ordering*
• Below prices are given in standard specifications *Customizations in body material and operating temperature possible and price will increase. Kindly contact for customizations


• Kindly contact us for estimating delivery time or shipping charges


• Available Passage Size in type inline inlet/outlet passages:
100 series rotary union

• Drawings provided above are based on our best knowledge. Minor updates in drawing might not be reflected on website. Buyers are requested to confirm the drawing while order placement.
