Rotary Unions

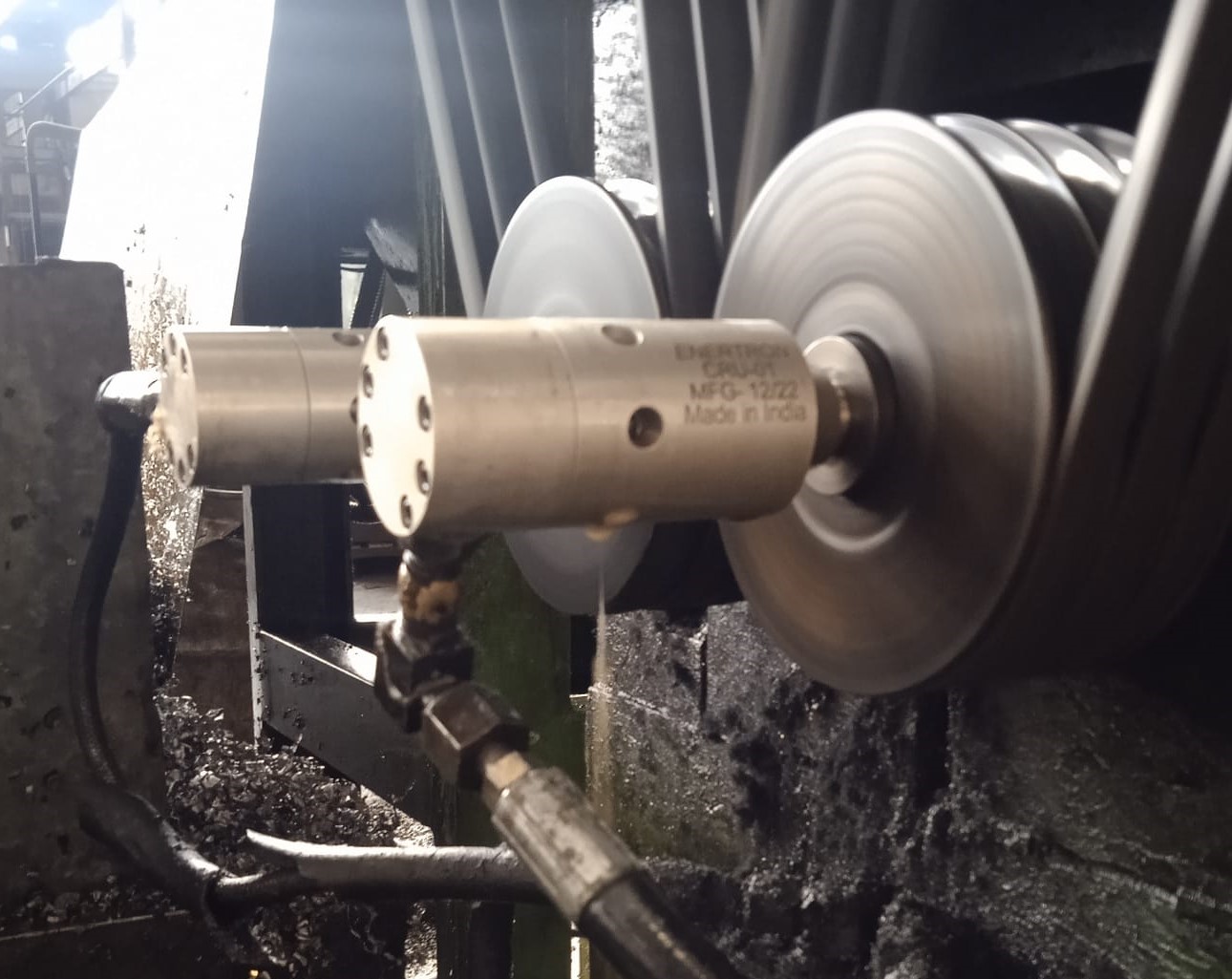

The 1300 Series rotary unions are widely used for through spindle coolant application in CNC machines

• Media Type: Oil
• Number of passages: 1, 2
• Available Passage Size: M16* 1.5 LH (Other sizes also available on request)
• Connection Types: British Standard Pipe Thread (BSP) or Metric threads or NPT
• Body Material Type: Carbon Steel or Stainless Steel
• Max Operating Pressure: 80 Bar
• Max Rotational Speed: 5000 RPM
• Operating Temperature: -18 to 105 deg Celsius (Higher temperature product also available)
